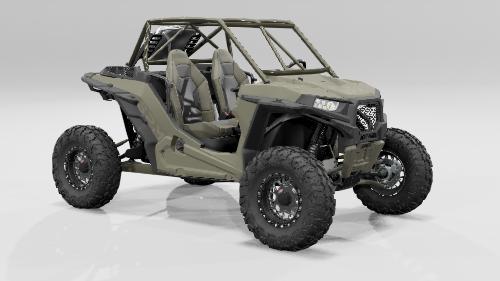

SPM Tactical Concept
spmrzr / SPM Military Concept
Overview
| Metric | Value |
|---|---|
| Engine layout / position | Electric |
| Drivetrain | Part-time 4WD |
| Total / dry weight | 830 kg (dry 830 kg) |
| Weight distribution (F : R) | Not calculated |
| Axle load (F / R) | Not calculated |
| Engine type | Electric / 16 kg |
| Power / Torque | 136 PS @ 5,427 rpm / 22.3 kg·m @ 2,664 rpm |
| Tyre | Dirt |
| Tyre size | FRONT 230 mm · REAR 230 mm |
Weight distribution not calculated: Multiple or staggered axles need more than two support reactions
Tires
| Wheel | Nominal | Physical width / mm | Radius / mm | PSI | Friction | Sliding | Tread | Softness | No-load | Full-load | Load slope | Stribeck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RR | 230 | 380 | 15.2 | 1 | 1.05 | 0.95 | 1 | 1.18 | 0.55 | 0.000051 | 1.5 | |
| RL | 230 | 380 | 15.2 | 1 | 1.05 | 0.95 | 1 | 1.18 | 0.55 | 0.000051 | 1.5 | |
| FR | 230 | 380 | 15.2 | 1 | 1.1 | 1 | 0.8 | 1.3 | 0.4 | 0.00025 | 1.5 | |
| FL | 230 | 380 | 15.2 | 1 | 1.1 | 1 | 0.8 | 1.3 | 0.4 | 0.00025 | 1.5 |
