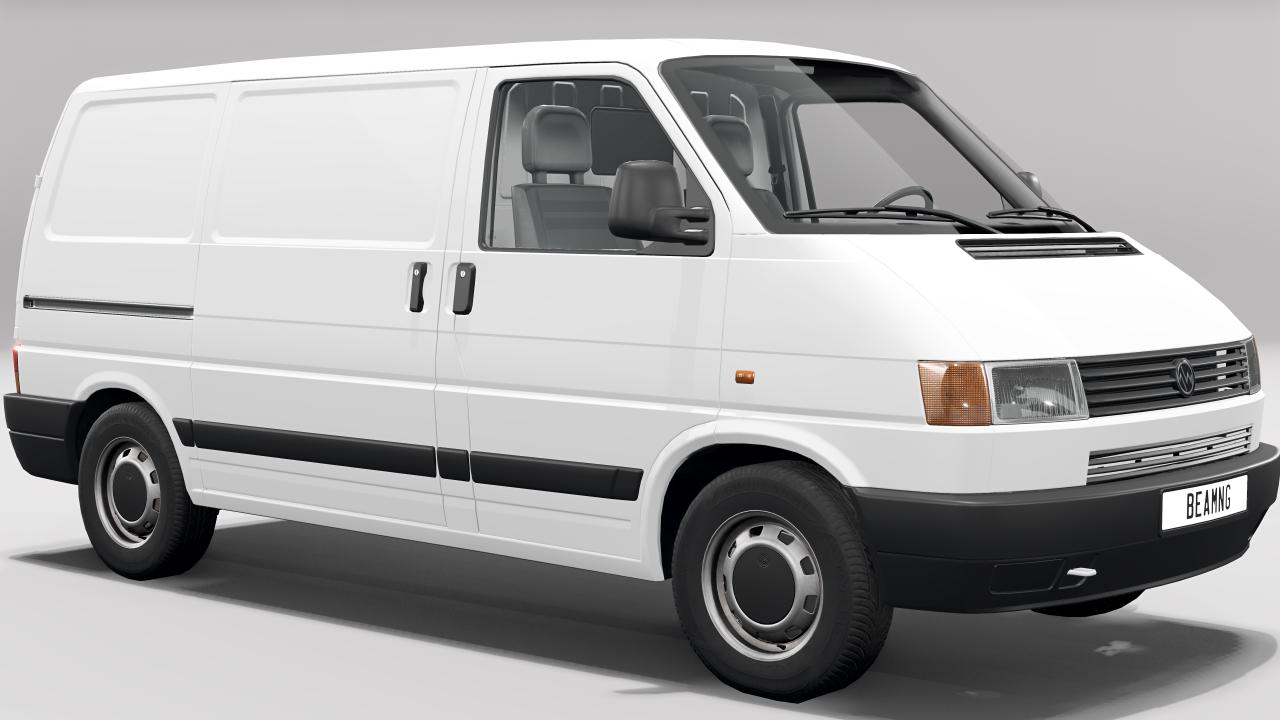

AW T-Wagen [DEMO] 2.4D Cargo (M) (EUDM)
awt_demo / 240d_cargo_m_eudm
Overview
| Metric | Value |
|---|
| Engine layout / position | FF · Transverse |
| Drivetrain | FWD |
| Total / dry weight | 1,790 kg (dry 1,714 kg) |
| Weight distribution (F : R) | 62.9 : 37.1 (dry 62.3 : 37.7) |
| Axle load (F / R) | 1,125 kg / 664 kg (dry 1,068 kg / 646 kg) |
| Engine type | L5 / NA / 2.4L / 248 kg |
| Power / Torque | 82 PS @ 4,299 rpm / 15.8 kg·m @ 2,435 rpm |
| Tyre | Comfort |
| Tyre size | FRONT 190 mm · REAR 170 mm |
Tires
| Wheel | Nominal | Physical width / mm | Radius / mm | PSI | Friction | Sliding | Tread | Softness | No-load | Full-load | Load slope | Stribeck |
|---|
| RR | | 170 | 325 | 41 | 1.1 | 1.15 | 0.7 | 0.7 | 1.31 | 0.4 | 0.000182 | — |
| RL | | 170 | 325 | 41 | 1.1 | 1.15 | 0.7 | 0.7 | 1.31 | 0.4 | 0.000182 | — |
| FR | | 190 | 325 | 37 | 1.1 | 1.15 | 0.7 | 0.7 | 1.31 | 0.4 | 0.000182 | — |
| FL | | 190 | 325 | 37 | 1.1 | 1.15 | 0.7 | 0.7 | 1.31 | 0.4 | 0.000182 | — |
